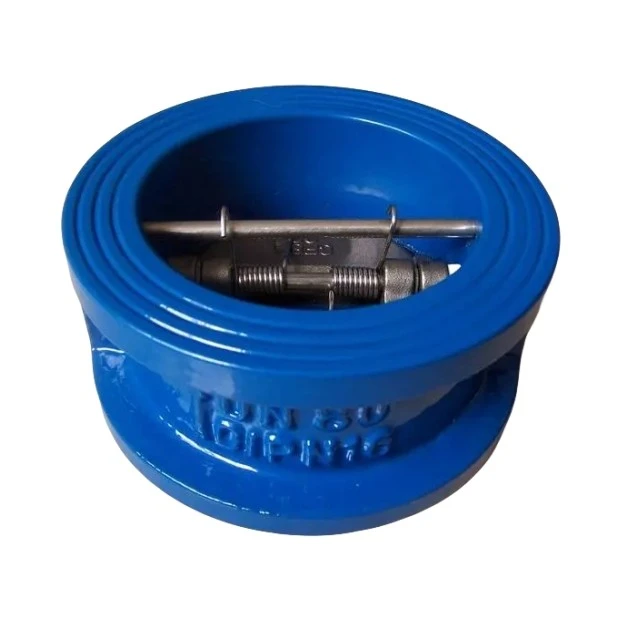

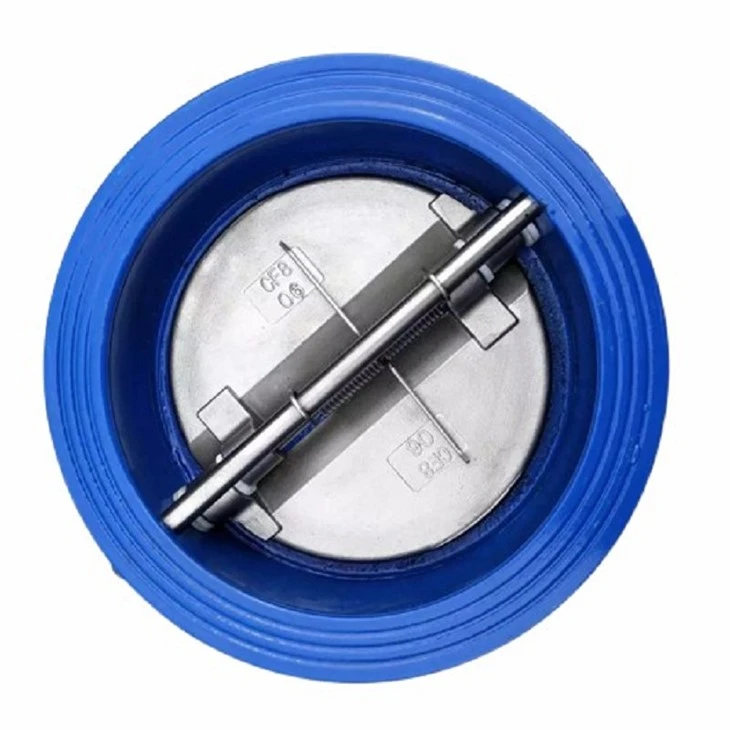

Butterfly Takaiskuventtiili

Model: DH77X-16Q
Dimensions: DN50-DN600
Liitäntä menetelmä% 3a kiekko
Working Pressure: PN10 PN16 150LB
Temperature Range: -10 degree -200 degree











1. Check valves with the valve disc sliding along the vertical centerline of the valve body. Butterfly check valves can only be installed on horizontal pipelines, and the valve disc can be used as a ball on high-pressure small diameter check valves. The valve body shape of a butterfly check valve is the same as that of a globe valve (which can be used interchangeably with globe valves), so its fluid resistance coefficient is relatively large. Its structure is similar to that of a globe valve, with the valve body and disc being the same as the globe valve. The upper part of the valve disc and the lower part of the valve cover are equipped with guide sleeves. The guide sleeve of the valve disc can freely rise and fall within the guide sleeve of the valve disc. When the medium flows downstream, the valve disc opens by the medium thrust. When the medium stops flowing, the valve disc lands on the valve seat by self verticality, preventing the medium from flowing back. The direction of the medium inlet and outlet channels of the straight through butterfly check valve is perpendicular to the direction of the valve seat channel; The vertical lifting check valve has a medium inlet and outlet channel with the same direction as the valve seat channel, and its flow resistance is smaller than that of the straight through type;

2. A check valve with a disc rotating around a pin in the valve seat. The butterfly check valve has a simple structure and can only be installed on horizontal pipelines, resulting in poor sealing performance.





1. The design is novel and reasonable, the structure is perfect, the weight is light, and the opening and closing are quick.

2. The operating torque is small, the operation is convenient, labor-saving and dexterous.

3. It can be installed in any position and easy to maintain.

4. The seal can be replaced, and the sealing performance is reliable to achieve two-way sealing and zero leakage.

5. The sealing material has the characteristics of aging resistance, weak corrosion resistance and long service life.





1. The opening and closing is convenient and quick, labor-saving, and the fluid resistance is small, so it can be operated frequently.

2. Simple structure, small size and light weight.

3. It can transport mud, and there is less liquid accumulated at the mouth of the pipeline.

4. Under low pressure, good sealing can be achieved.

5. Good adjustment performance.
